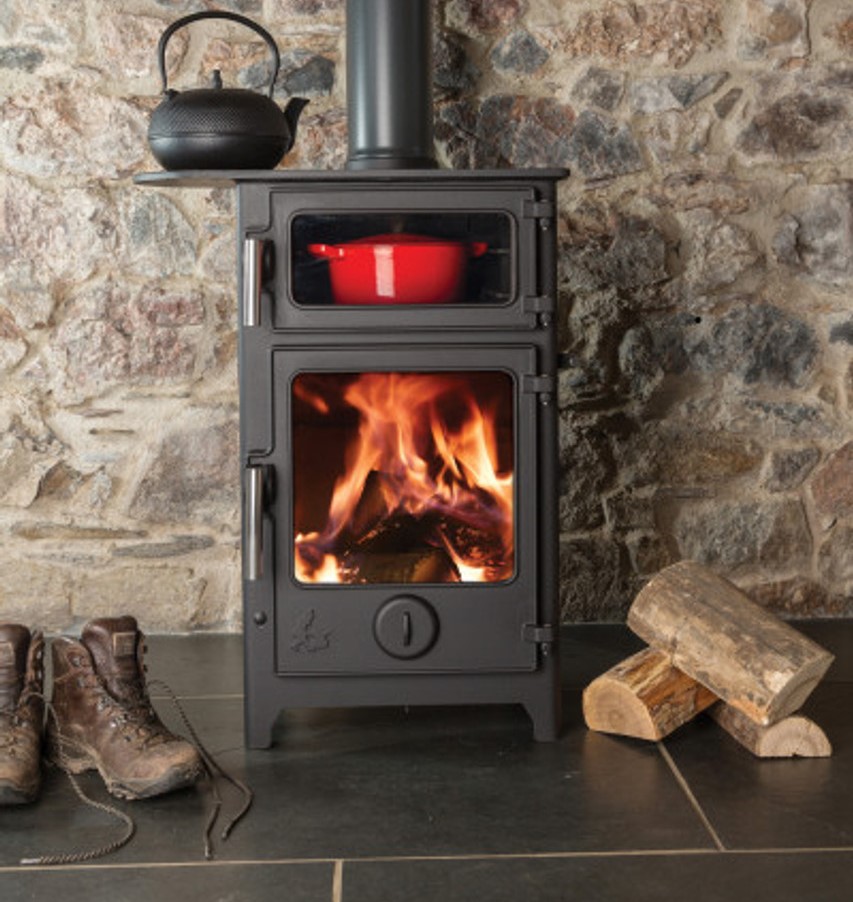

DF Baker 5 Plus Eco WB/MF

The new Dartmoor Baker Plus 5 Eco with a nominal output of 5kw, raises the height of the Dartmoor Baker Stove creating easier access to the oven. In addition The Dartmoor Baker Plus W5 Eco has been developed to allow a distance to combustibles of only 50mm to the rear, with a double heat shield fitted.

The Dartmoor Baker Plus 5 Eco’s have oven vents which allow the cooking smells and condensation to be drawn out of the oven and up the chimney.  If you would like to use the top of the stove to warm a pan or boil a kettle then the use of the back flue outlet is recommended when installing the stove. Using the rear flue outlet will create a clear area, providing extra space and access to the hotter part of the top plate (near the back), a Dartmoor Baker back adaptor with flue cleaning access can be purchased to achieve this.

Technical Data

• Nominal Output 5Kw
• Efficiency 82.1%
• Flue Size 125mm (5″)
• Standard Leg Length 230mm (4.13″)
• Flue Centre Top 133mm
• Flue Centre Rear 797mm
• Energy Efficiency Class A+

Dimensions

W: 430
H: 900
D: 315
D: 375 with handle
