DF Dartmoor Baker W5 Eco WB/MF

The Dartmoor Baker W5 Eco has oven vents which allow the cooking smells and condensation to be drawn out of the oven and up the chimney. If you would like to use the top of the stove to warm a pan or boil a kettle then the use of the back flue outlet is recommended when installing the stove. Using the rear flue outlet will create a clear area, providing extra space and access to the hotter part of the top plate (near the back), a special Dartmoor Baker back adaptor with flue cleaning access can be purchased to achieve this.

Only 50mm distance to combustibles to the rear when fitted with a double heat shield and twin wall flue.All the Dartmoor Bakers Eco’s stoves have a removable cleaning plate located inside the oven. This door provides a cleaning access to the top of the oven or for sweeping the chimney when fitted with a top exit flue.

Technical Data

• Nominal Output: 5Kw
• Efficiency: 83.1%
• Flue Size: 125mm (5″)
• Standard Leg Length: 105mm (4.13″)
• Flue Centre Top: 133mm
• Flue Centre Rear: 685mm
• Eco 2022 Compliant: Yes
• Energy Efficiency Rating: A+

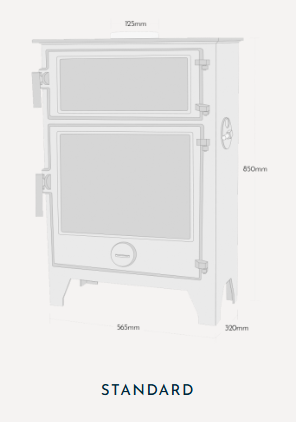

Dimensions

• W: 565
• H: 850
• D: 320
• D: 375 with handle
• D: 330 Depth with Double Heat Shield
