Gazco – Gazco Logic™ Gas Inset Fires – (Convector & HE)
Designed to warm the very heart of your home, a Gazco Logic Gas Inset Fire brings you the promise of cosy comfort throughout those long winter nights; even if you don’t have a chimney! With a range of front and finish choices to choose from below, there are plenty of ways to tailor the look and feel for your home.
Find out more about the Gazco Logic Gas Inset Fire.

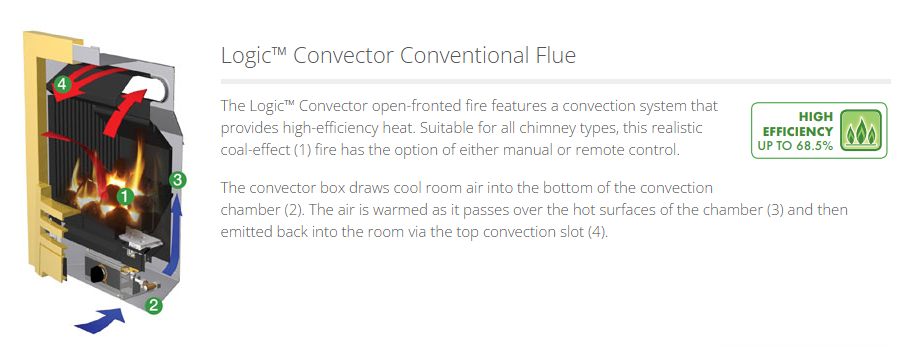

Logic™ Convector Conventional Flue
The Logic™ Convector open-fronted fire features a convection system that provides high-efficiency heat. Suitable for all chimney types, this realistic coal-effect (1) fire has the option of either manual or remote control.
The convector box draws cool room air into the bottom of the convection chamber (2). The air is warmed as it passes over the hot surfaces of the chamber (3) and then emitted back into the room via the top convection slot (4).

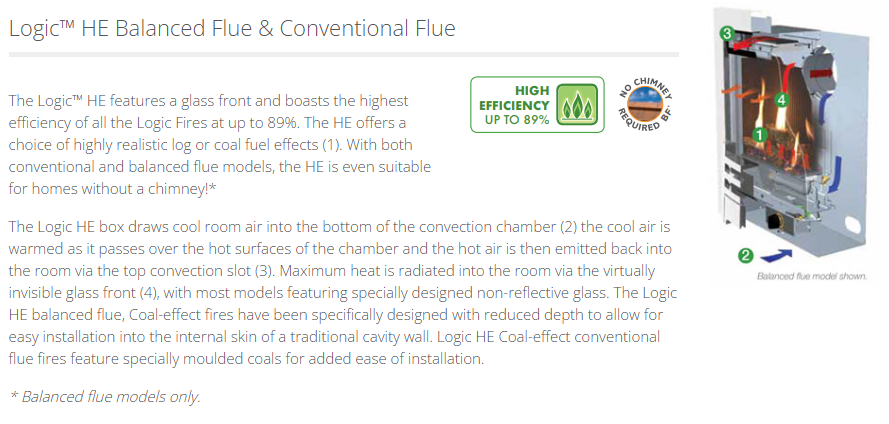

Logic™ HE Balanced Flue & Conventional Flue
The Logic™ HE features a glass front and boasts the highest efficiency of all the Logic Fires at up to 89%. The HE offers a choice of highly realistic log or coal fuel effects (1). With both conventional and balanced flue models, the HE is even suitable for homes without a chimney!*
The Logic HE box draws cool room air into the bottom of the convection chamber (2) the cool air is warmed as it passes over the hot surfaces of the chamber and the hot air is then emitted back into the room via the top convection slot (3). Maximum heat is radiated into the room via the virtually invisible glass front (4), with most models featuring specially designed non-reflective glass. The Logic HE balanced flue, Coal-effect fires have been specifically designed with reduced depth to allow for easy installation into the internal skin of a traditional cavity wall. Logic HE Coal-effect conventional flue fires feature specially moulded coals for added ease of installation.
* Balanced flue models only.
Logic™ Control Options
The Logic family* of fires are available with your choice of three different control options: manual control, slide control or, for absolute convenience, a remote control for the ultimate luxury heating experience.
Manual Control
An easy to use system that allows for ignition, extinguishing and full flame control all from a single control handle. To maintain the aesthetic appeal of your fire, the controls are discretely located behind the frame front at the bottom of the fire and can be accessed with ease.
Slide Control
Gazco’s innovative Slide system has a subtly designed, ergonomic control that is situated to the top right hand side of the fire’s frame for easy access. This easy reach lever offers complete and convenient control over the fire. Ignite or extinguish the fire as well as adjust flame height and corresponding heat levels to achieve the warmth and ambience you desire. Slide control Logic fires are available with a specific selection of frame styling options, please see table below for details.
Logic HE Conventional Flue Coal-effect slide control fires feature a new injection moulded control handle which is cooler to the touch.
Remote Control Options
Logic HE remote control fires offer complete convenience, allowing you to operate your fire from the comfort of your sofa. Your fire’s remote control options will depend on which fuel-effect you choose.
Coal-effect Logic HE balanced flue remote control fires come with our standard handset, which allows you to adjust heat output and flame height. For greater control, you can select the optional Programmable Thermostatic handset, which lets you thermostatically control the room temperature as well as scheduling your fire toswitch itself on and off twice a day, once the pilot has been ignited.
Log-effect Logic HE fires and Coal-effect Logic HE conventional flue fires can be selected with our fully-sequential thermostatic handset. This advanced remote control allows you to ignite your fire and adjust the flame without getting up. This powerful control system can also set your Logic fire to maintain your preferred room temperature, if desired.
*Logic HE Log-effect is only available with Slide Control and Remote Control options.
Key Features
| Logic Convector* | Logic HE | |
|---|---|---|
| Efficiency | 68.5% | CF: Up to 89% BF: Up to 86% |
| Heat output | Up to 4.20kW (input 6.70kW) | CF: Up to 3.90kW (input 5.20kW) BF: Up to 3.40kW (input 4.40kW) |
| Manual versions | Yes | Yes |
| Slide control | Yes | Yes |
| Remote control | Yes | Yes |
| Fits into standard 410x560x250mm (wxhxd) fireplace opening |
Yes | Yes |
| Fuel bed options | Coal | Coal & Logs |
| Convected heat | Yes | Yes |
| Non-Reflective Glass♦ | No | |
| Radiant heat | Yes | Yes |
| Wide selection of frames | Yes | Yes |
| Natural Gas or LPG | Yes | Yes |
| Can be wall mounted | No | Yes |
| Ambient open fire | Yes | No |
| Glass fronted high efficiency | No | Yes |
| ODS (Oxygen Depletion Sensor)† | Yes | Yes |
| Additional air vent required | No | No |
| Conventional Flue | Yes | Yes |
| Balanced Flue | No | Yes |
| Energy Efficiency Class | F | B |
*This product is not suitable for primary heating purposes.
† ODS (Oxygen Depletion Sensor) – This safety feature will shut off the gas supply to the burner in the event of a reduction to oxygen levels in the room (conventional flue only).
♦ Not available to Logic HE Balanced Flue Coal-effect
Logic Front Choices
Manual & Remote Control Fires
| Logic Convector | Logic HE (logs) | Logic HE (coals) | ||
|---|---|---|---|---|
| Arts | Yes | Yes | Yes | More info |

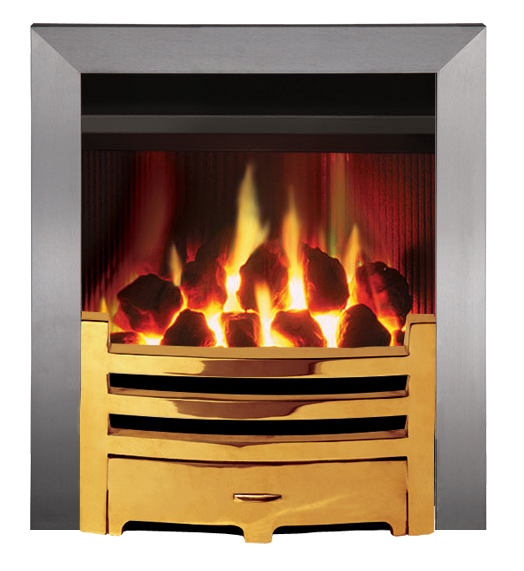

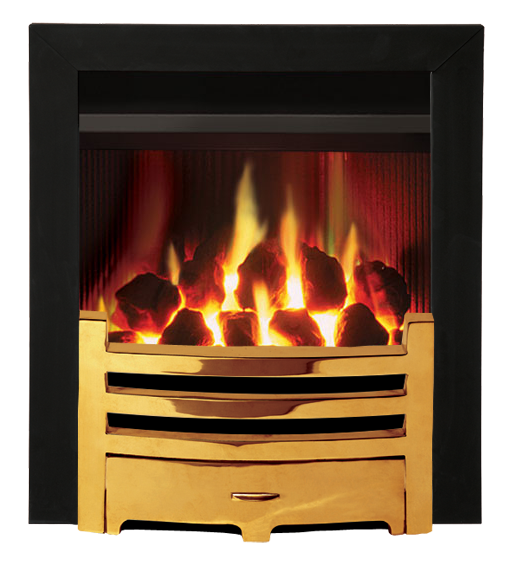

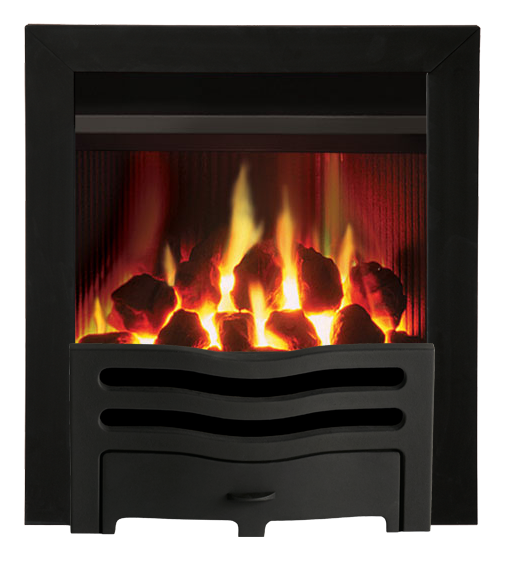

| Wave | Yes | Yes | Yes | More info |

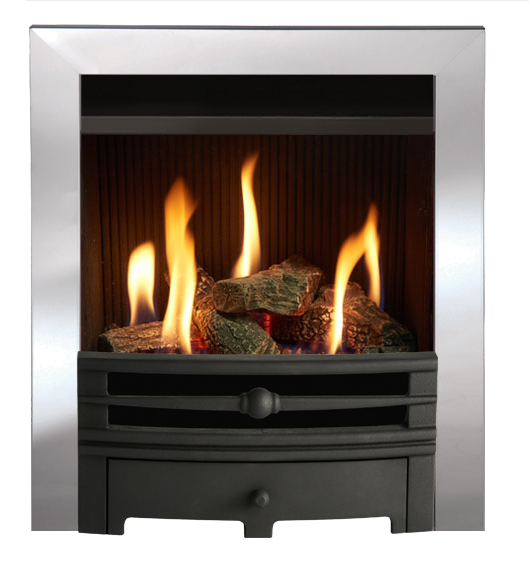

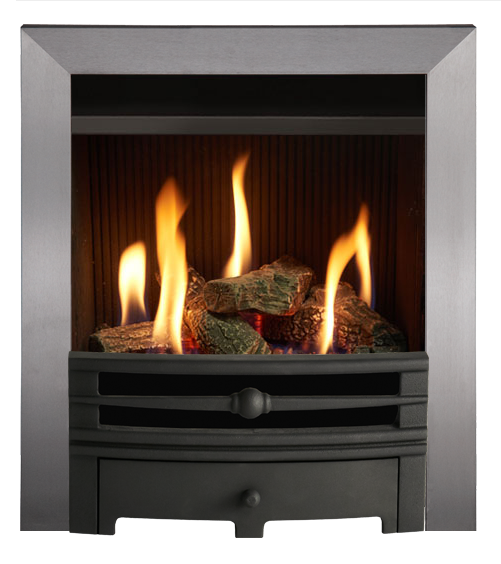

| Chartwell | Yes | Yes | Yes | More info |
Slide Control Fires
| Logic Convector | Logic HE (logs) | Logic HE (coals) | ||
|---|---|---|---|---|
| Arts | Yes | Yes | Yes | More info |
| Wave | Yes | Yes | Yes | More info |
| Chartwell | Yes | Yes | Yes | More info |

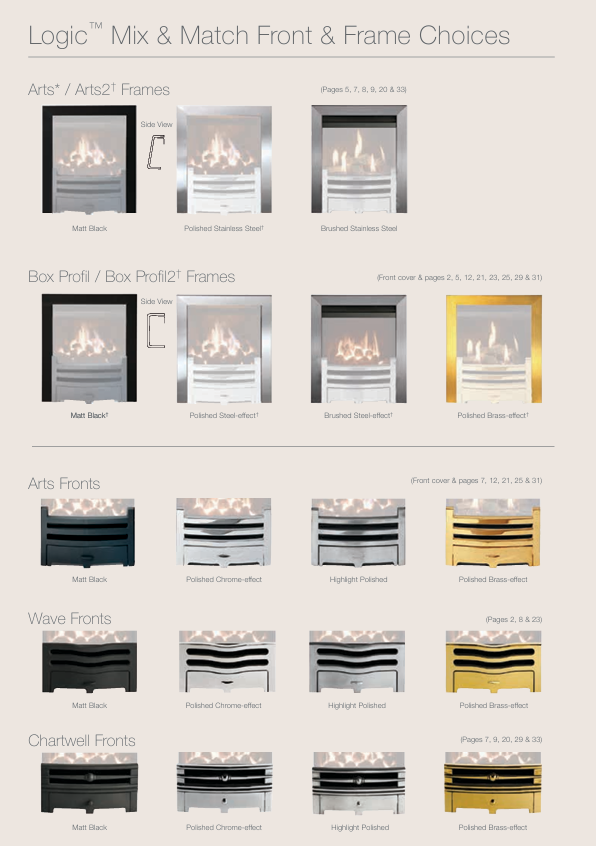

Logic Frame Choices
Manual & Remote Control Fires
| Logic Convector | Logic HE (logs) | Logic HE (coals) | ||
|---|---|---|---|---|
| Arts | Yes | No | No | More info |
| Box Profil | Yes | No | No | More info |
| Arts2 | No | Yes | Yes | More info |
| Box Profil2 | No | Yes | Yes | More info |
Slide Control Fires
| Logic Convector | Logic HE (logs) | Logic HE (coals) | ||
|---|---|---|---|---|
| Arts | Yes | No | No | More info |
| Box Profil | Yes | No | No | More info |
| Arts2 | No | Yes | Yes | More info |
| Box Profil2 | No | Yes | Yes | More info |

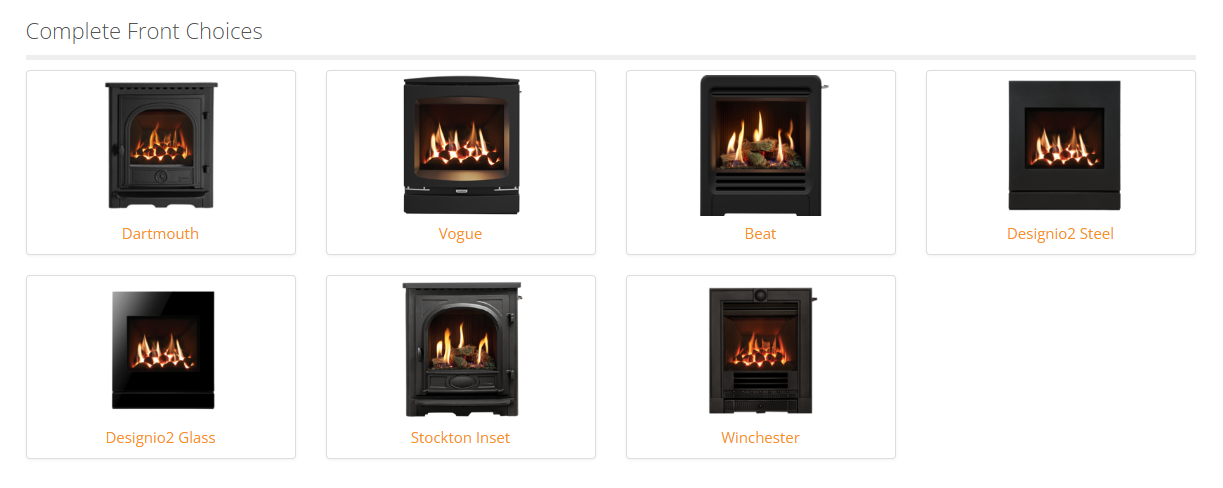

Logic Complete Choices
Manual & Remote Control Fires
| Logic Convector | Logic HE (logs) | Logic HE (coals) | ||
|---|---|---|---|---|

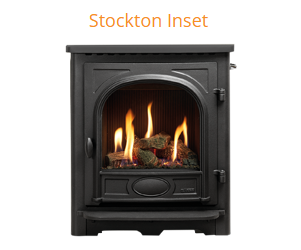

| Stockton Inset | No | Yes | Yes | More info |
| Winchester | Yes | Yes | Yes | More info |
| Tempo | No | Yes | Yes | More info |
| Designio2 Glass | No | Yes | Yes | More info |
| Designio2 Steel | No | Yes | Yes | More info |
| Beat | No | Yes | Yes | More info |
| Vogue Inset | No | Yes | Yes | More info |
| Dartmouth | No | Yes | Yes | More info |
Slide Control Fires
| Logic Convector | Logic HE (logs) | Logic HE (coals) | ||
|---|---|---|---|---|
| Stockton Inset | No | Yes | Yes | More info |
| Winchester | Yes | Yes | Yes | More info |
| Tempo | No | Yes | Yes | More info |
| Designio2 Glass | No | Yes | Yes | More info |
| Designio2 Steel | No | Yes | Yes | More info |
| Beat | No | Yes | Yes | More info |
| Vogue Inset | No | Yes | Yes | More info |
| Dartmouth | No | Yes | Yes | More info |

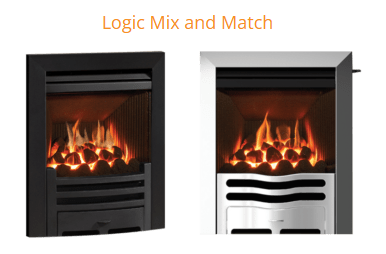

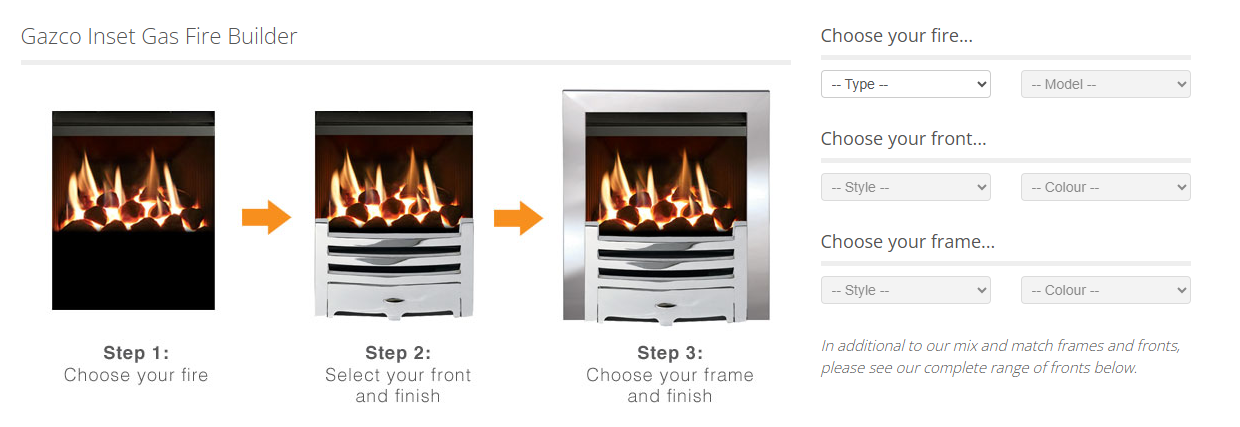

Gazco Inset Gas Fire Builder
Please visit the Gazco website to build your mix and match logic fire online… as below…
Personalise your inset gas fire – Stovax & Gazco
You can select from…
Step 1 – Choose your fire
Logic Convector (coals)
Logic HE (coals)
Logic HE (logs)
Step 2 – Choose your front and finish
Arts front (Matt Black, Polished Stainless Steel, Brushed Stainless Steel, Polished Brass Effect)
Wave Front (Matt Black, Polished Stainless Steel, Brushed Stainless Steel, Polished Brass Effect)
Chartwell Front (Matt Black, Polished Stainless Steel, Brushed Stainless Steel, Polished Brass Effect)
Step 3 – Choose your frame and finish
Arts Frame (Matt Black, Polished Stainless Steel, Brushed Stainless Steel)
Wave Frame (Matt Black, Polished Stainless Steel, Brushed Stainless Steel, Polished Brass Effect)
Chartwell Front (Matt Black, Polished Stainless Steel, Brushed Stainless Steel, Polished Brass Effect)
Or from the 7 different complete frame options…
The Gazco Designio2 Glass gas fire offers great appeal with its thoroughly contemporary and cutting edge design. Similar in form to the Designio2 Steel, this stylish inset gas fire has a shining black glass finish and will make a stunning focal point in the room, even when the fire is off.
Suitable for both hearth mounting and inbuilt installations further up the wall, this inset gas fire is the perfect complement to the 16″ Logic™ HE range.
Similar in form to the Gazco Designio2 Glass inset gas fire, the Designio2 Steel has a clean and contemporary design which perfectly complements the range of 16″ Logic™ HE gas fires.
The Gazco Designio2 Steel inset gas fire is available in a stylish bold Graphite finish and suitable for both hearth mounting and inbuilt installations further up the wall.
A masterpiece of casting detail, the Gazco Winchester inset gas fire’s hob grate styling is equally suited to both traditional and contemporary interiors.
There are versions of the Winchester gas inset fire for all types of home even if you don’t have a chimney! You can also select from our wide selection of sizes, colours, control systems and fuel effects for your inset gas fire.
Logic™ HE versions of the Winchester have a cross bar and grille.
Built from cast iron, the Gazco Beat gas fire combines heavy industrial styling with clear lines and smooth edges. This statement design makes clear reference to Art Deco architectural styles with a clean, streamlined look that adds further impact to this versatile gas fire range.
The Beat is compatible with both Slide, manual and Remote control Logic HE fires.
Logic TM Convector Fires, starting from £1059.00
Logic TM HE Convector Fires, starting from £1109.00
