SCAN 5003 FL
Large glass panes
Description

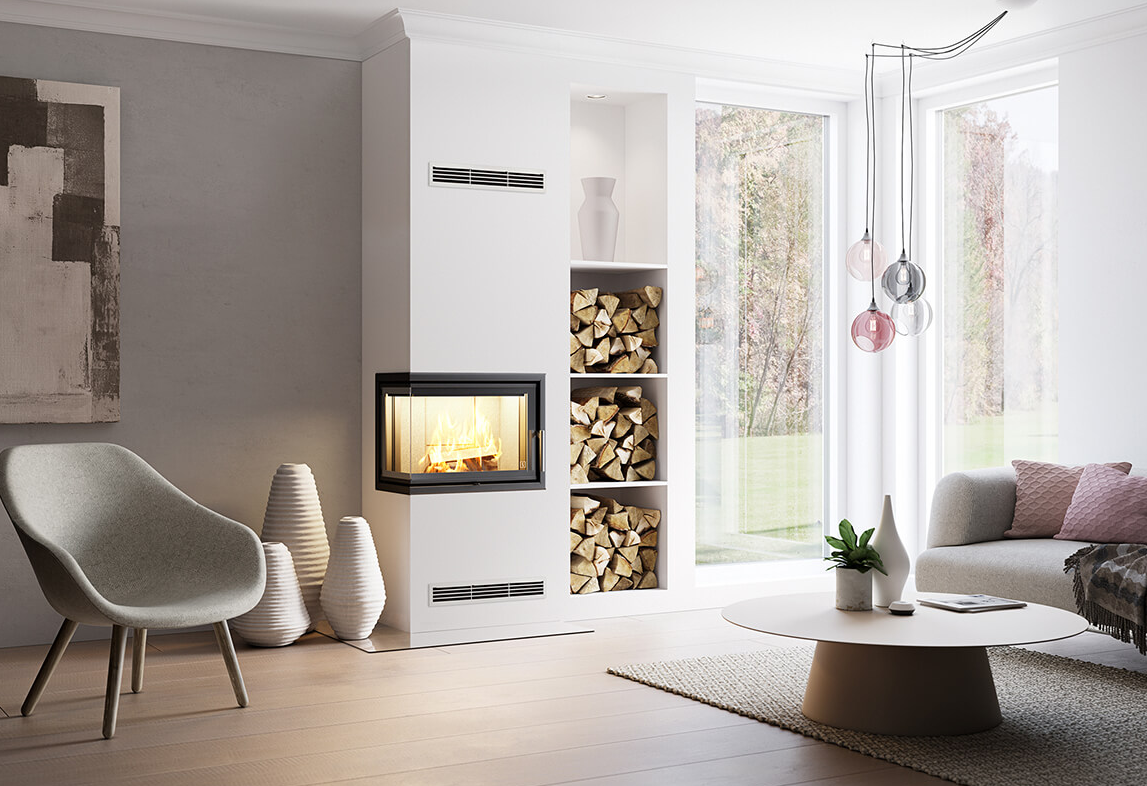

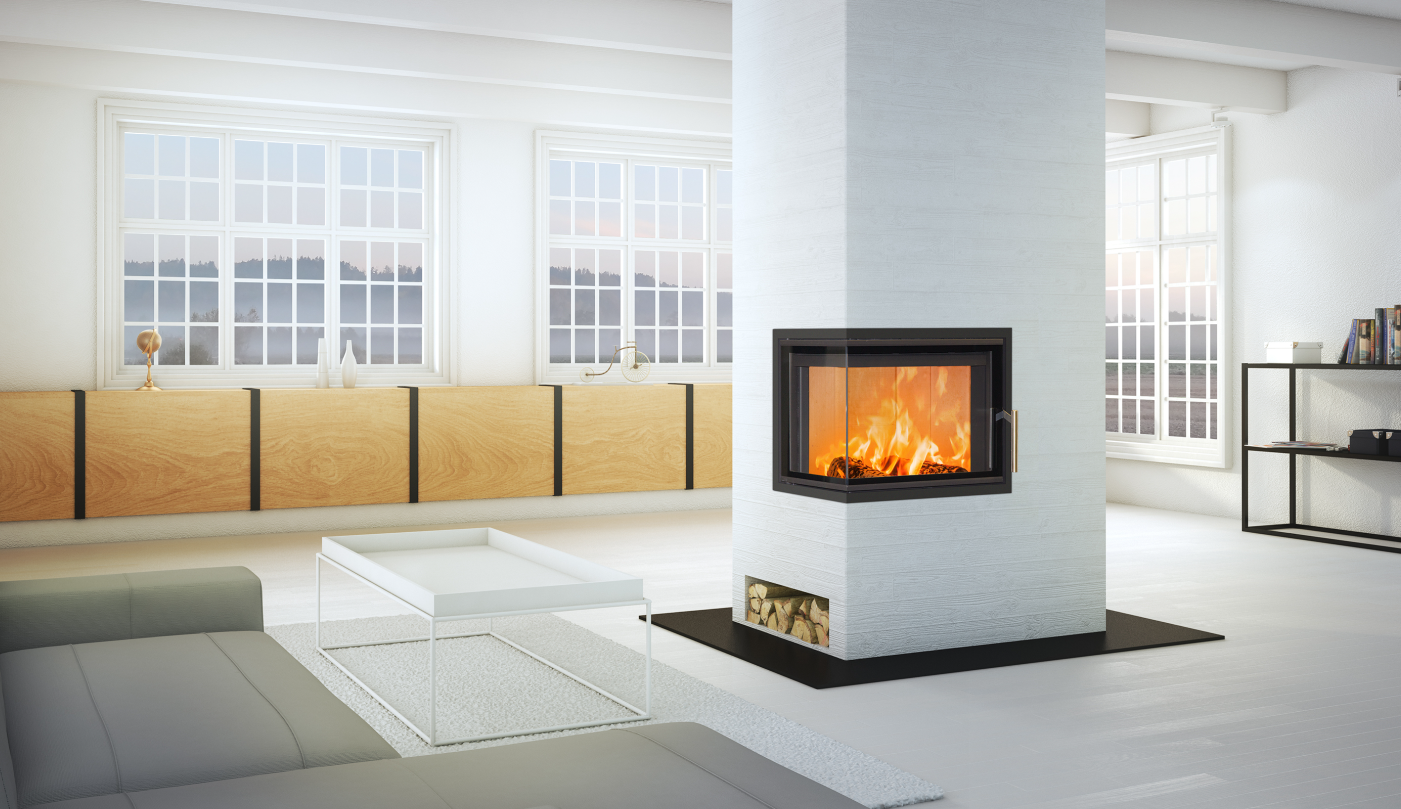

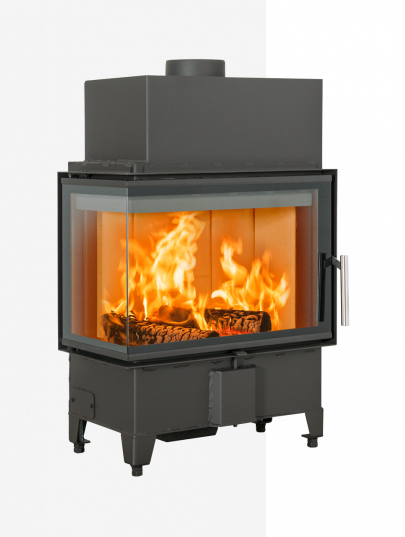

Scan 5003 is a corner insert with a horizontal flame image. It comes with glass on two sides, front/left (FL) or front/right (FR).
- Light burn plates
- Large heating capacity
Size
- Height: 1,031 mm
- Width: 638 mm
- Depth: 389 mm
Specifications
- Weight – 128 kg
- Log size up to 45 cm
- Flue outletØ – 150 mm
- Flue exit options – Top / Rear
- Nom output – 5.7 kW
- Efficiency – 83 %
- Heating capacity up to 160 m²
- CO Emission – 0.08 %
- Dust Product Emission – 11 mg/Nm³
- NOx Emission – 118 mg/Nm³
- OGC Emission – 53 mg/Nm³
- Closed combustion – Yes
- Clean burn – Yes
- External air intake – Yes
The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website. If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know. Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability
