SCAN 5004 FRL
Large glass panels
Description

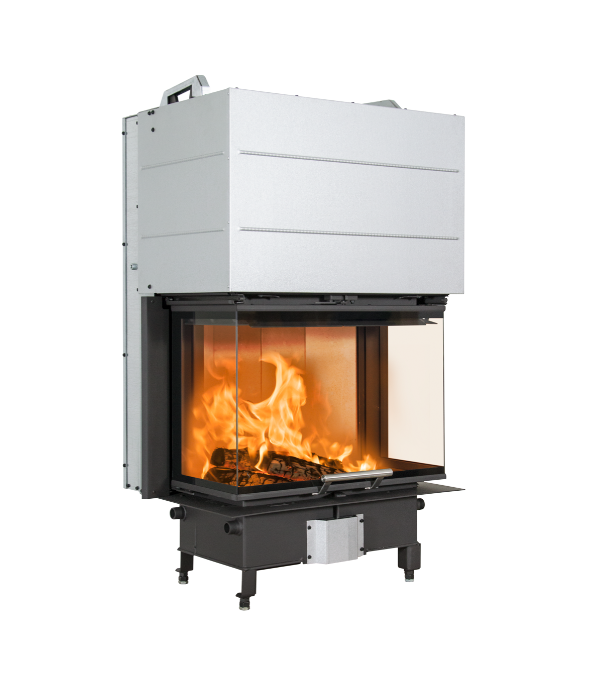

Scan 5004 FRL is a large fireplace, which will dominate your room and spread the feeling of luxury. The glass covers three sides. A high end lifting/guillotine door with soft-close mechanism leaves an exclusive impression.
- Light burn plates
- Large heating capacity

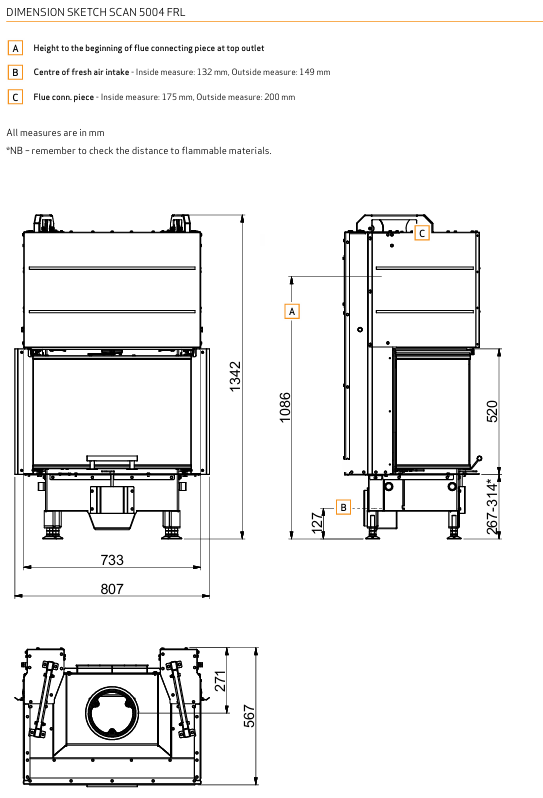

Size
- Height: 1,342 mm
- Width: 807 mm
- Depth: 567 mm
Specifications
- Weight – 218 kg
- Log size up to 40 cm
- Flue outletØ – 200 mm
- Flue exit options – Top / Rear
- Nom output – 7.8 kW
- Efficiency – 83 %
- Heating capacity up to 160 m²
- CO Emission – 0.09 %
- Dust Product Emission – 25 mg/Nm³
- NOx Emission – 81 mg/Nm³
- OGC Emission – 35 mg/Nm³
- Closed combustion – Yes
- Clean burn – Yes
- External air intake – Yes
