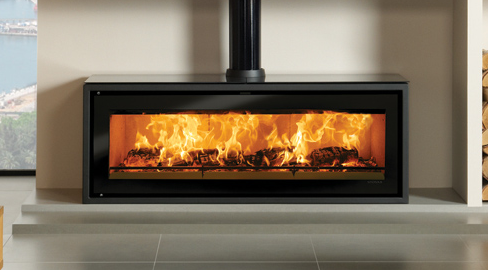

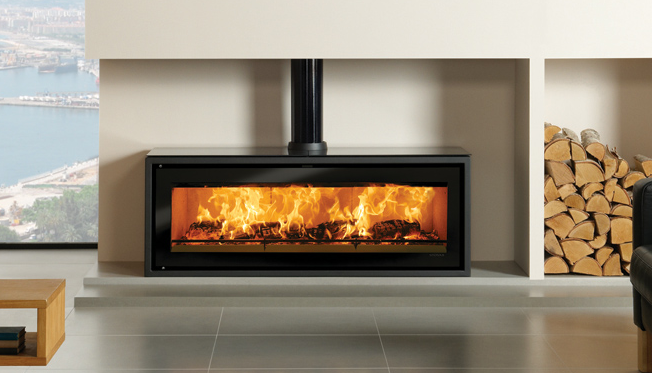

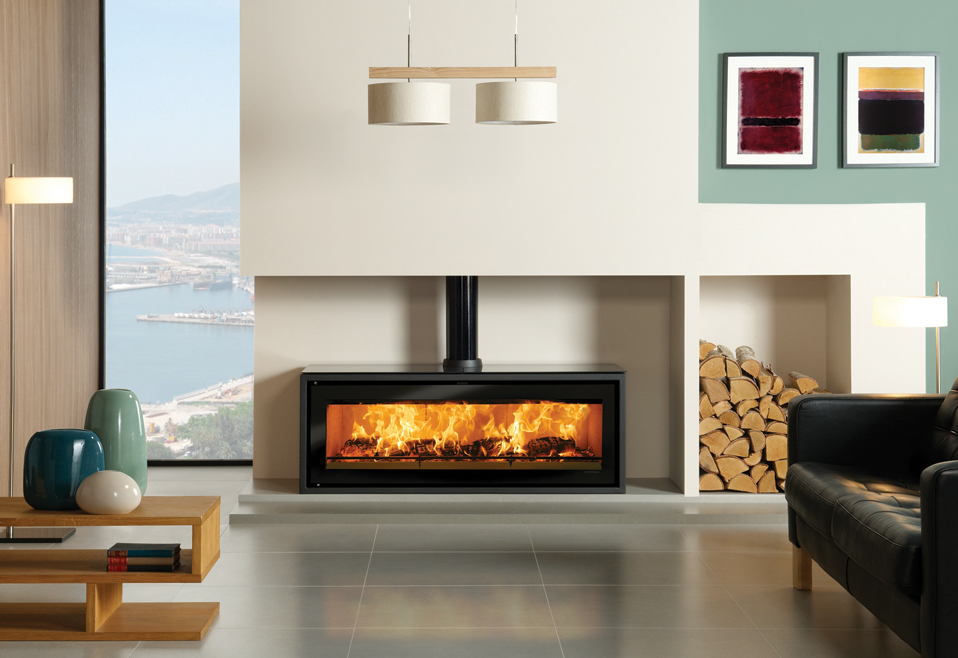

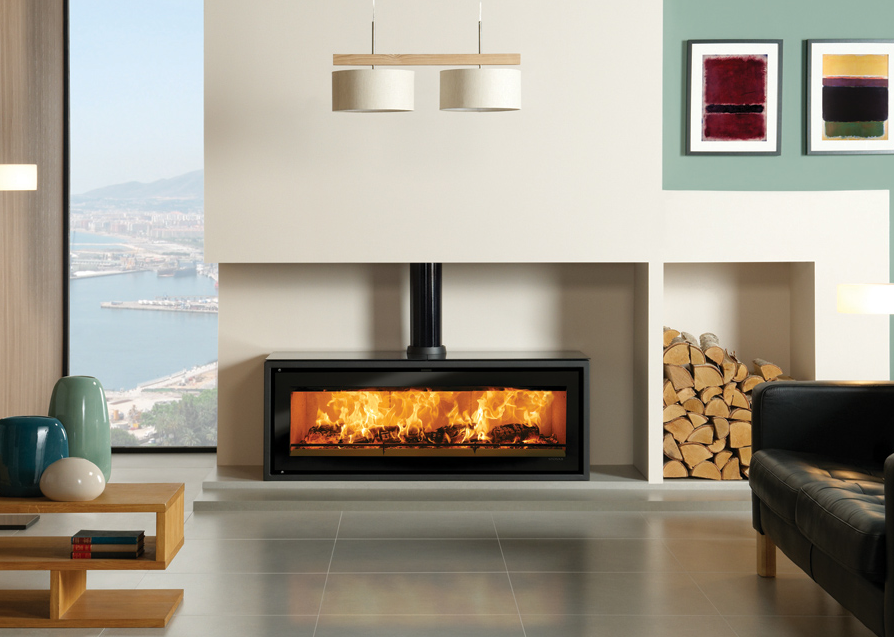

Stovax – Studio 3 Freestanding
The largest in Stovax’s Studio range is the striking Studio 3 Freestanding Ecodesign wood burning stove. This highly efficient and visually impressive wood burning stove has the same 12.6kW of heat output and stunning widescreen views of the flames as its inset fire equivalent but offers a very different look.

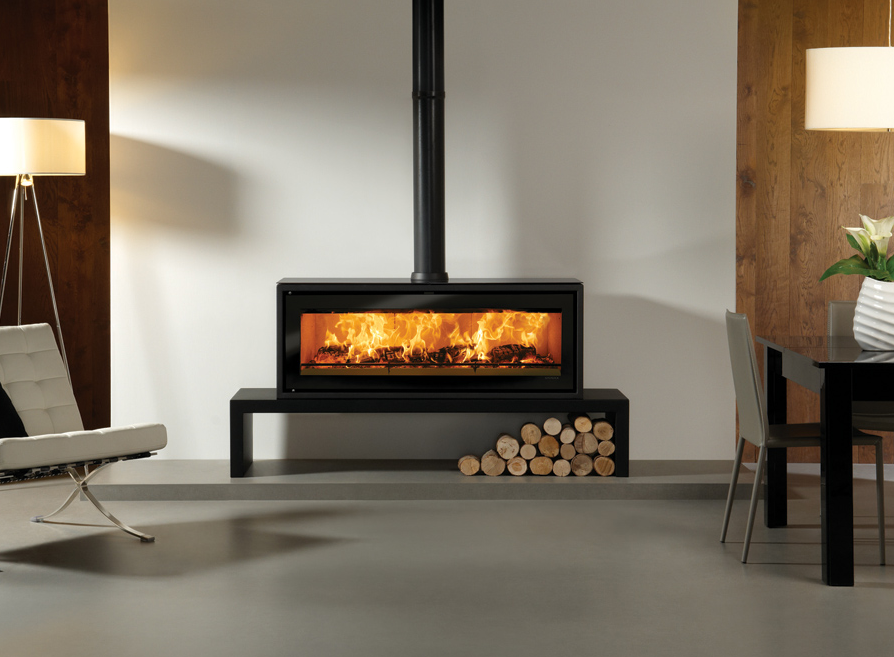

Designed to be sited on to the optional 180 Bench, or hearth mounted to achieve the distinctive stove look, the Studio 3 Freestanding will create maximum visual impact in rooms of larger proportions. It also has the ability to be fitted with an optional rear heat shield to reduce the distance to combustible materials behind the appliance and extend the styling possibilities further still.
The Studio Freestanding range has been designed to create a striking feature in your living space with their enticing widescreen wood burning flame visuals complemented by an extensive array of frames and styling options.
The pure, simplistic form of the Studio stove range belies the high levels of engineering and technical innovation that keeps this range not only at the forefront of twenty first century fire design, but also exceptional performance and controllability.
All Studio stoves are designed for wood burning only.
Full range of Studio Freestanding…
Key Facts
| Brand | Stovax |
| Ecodesign Plus | Yes |
| High efficiency | up to 76.1% |
| Wood burning | Yes |
| Boost setting for lighting and re-fueling | Yes |
| Removable steel and TCL baffles | Yes |
| TCL firebox lining | Yes |
| Radiant heat and convected heat | Yes |
| Top flue connection | Internal Ø – 153mm (6”) |
| Optional black glass top plate | Yes |
| Optional decorative black flue ring cover | Yes |
| Optional Heat Shield kit* | Yes |
| Stove bench compatible† | Yes |
*Available when fitted to a Riva Bench.
Please note: Logs should only be stored beneath the bench if there is sufficient distance from the stove.
†When storing logs under stove benches Stovax advise this should be offset to one side and not directly beneath the stove’s position. If placing beneath the stove there should be a minimum 50mm air gap above logs.
| Width | Height | Depth | Weight | Max. Log Length | Nominal Heat Output & Range |
Energy Efficiency Class |
|---|---|---|---|---|---|---|
| 1389mm | 516mm | 445mm | 192kg | 500mm (20″) | 12.6kW (3.8-16kW) | A |
The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website. If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know. Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability
Last updated 22 May 2025
