Stovax – Studio 500 Freestanding
The Ecodesign Stovax Studio 500 further extends Stovax’s range of Studio Freestanding stoves and complements the already impressive choice of Studio fires available. This high performing wood burning stove has a compact, yet innovative design, broadening the Studio’s versatility and suitability to a variety of homes.

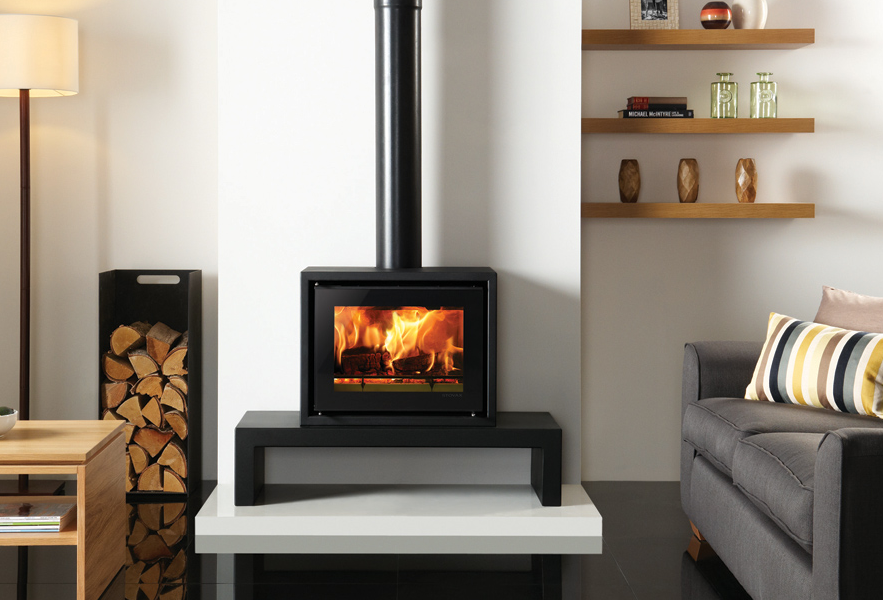

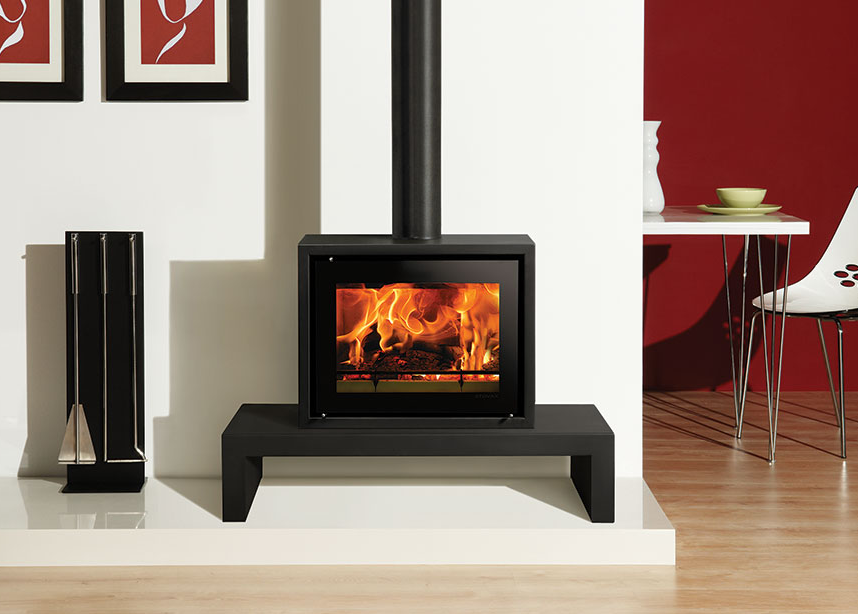

With a heat output to match that of the Studio 1 Freestanding stove, the Ecodesign Studio 500 Freestanding stove will provide ambience and warmth to a cosy inglenook. The Studio 500 can also be placed on one of Stovax’s Freestanding Benches to create a real style statement.
Stovax has introduced a range of highly effective Heat Shields for the Studio Freestanding Wood Burning Range
The Studio Freestanding range has been designed to create a striking feature in your living space with their enticing widescreen wood burning flame visuals complemented by an extensive array of frames and styling options.
The pure, simplistic form of the Studio stove range belies the high levels of engineering and technical innovation that keeps this range not only at the forefront of twenty first century fire design, but also exceptional performance and controllability.
All Studio stoves are designed for wood burning only.
Full range of Studio Freestanding…
Key Facts
| Brand | Stovax |
| Ecodesign Plus | Yes |
| High efficiency | up to 75.8% |
| Boost setting for lighting and re-fueling | Yes |
| Removable steel and TCL baffles | Yes |
| TCL firebox lining | Yes |
| Radiant heat and convected heat | Yes |
| Top flue connection | Internal Ø – 153mm (6”) |
| Optional Decorative black flue ring cover | Yes |
| Suitable for Smoke Control Areas* | Yes |
| Optional Heat Shield kit** | Yes |
| Stove bench compatible† | Yes |
*When fitted with a Smoke Control Kit and used in accordance with the operating instructions.
**Available when fitted to a Riva Bench.
†When storing logs under stove benches Stovax advise this should be offset to one side and not directly beneath the stove’s position. If placing beneath the stove there should be a minimum 50mm air gap above logs.
| Width | Height | Depth | Weight | Nominal Heat Output & Range |
Maximum log length | Energy Efficiency Class |
|---|---|---|---|---|---|---|
| 607mm | 479mm | 382mm | 85kg | 5.0kW (1.7-7kW) | 250mm (10”) | A |
