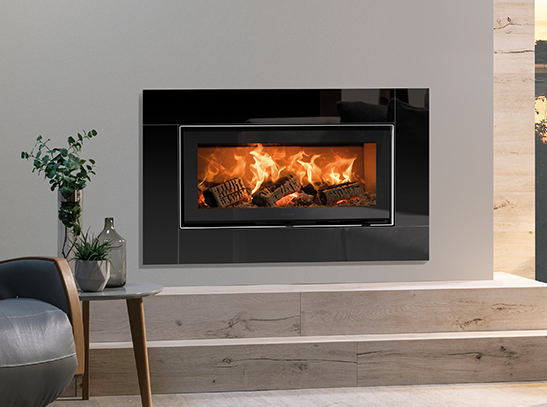

Stovax – Studio Air Icon XS Inset – Studio Air 1, Studio Air 2
With clean geometric lines and a reflective black glass finish, which complements the fire’s decorative trim options, the Stovax Studio Air Icon XS frame makes a bold statement and gives the impression of an even larger format wood burning fire, whichever size you choose.
Find out more about this high-efficiency fire range on the Studio Air Wood Burning Fires page.
Studio Air Inset Wood Burning Fires
Stovax Studio Air inset wood burning fires are available in two sizes, and each can be selected as a frameless Edge, or enhanced with a choice of contemporary framing options. Across all versions, the Studio Air can be selected with one of three decorative coloured trims, in Black, Storm Grey or White, and can be selected with an optional dedicated external air kit. Visit our Studio Air wood burning fires page for more information on this high efficiency range.
Full range of Studio Air Inset Wood Burning Fires…
Key Facts
| Brand | Stovax |
| Ecodesign Plus* | Yes |
| Suitable for Smoke Control Areas | Yes |
| Reversible door for left or right opening** | Yes |
| Optional Warm Air Ducting Kit† | Yes |
| High efficiency | 79.6% (Studio Air 1) / 78.5% (Studio Air 2) |
| Wood burning | Yes |
| Boost setting for lighting and re-fueling | Yes |
| Optional Dedicated External Air Kit | Yes |
| Convected and radiant heat | Yes |
| Single air control | Yes |
| Decorative Coloured Trims | Black, Storm Grey, White |
*Subject to official listing.
**When using optional Reverse Door Hanging Kit.
| Fire Size | Nominal Heat Output & Range |
Max log lengths | Frame dimensions mm (wxhxd) Icon XS |
Energy Efficiency Class |
|---|---|---|---|---|
| Studio Air 1 | 5.0kW (1.7-7kW) | 300mm (12″) | 1081 x 752 x 8mm* | A |
| Studio Air 2 | 8.2kW (2.8-11kW) | 400mm (16″) | 1281 x 778 x 8mm* | A |
*Dimensions given are those overall visible upon installation.
