Stovax – Studio Edge 500 Inset

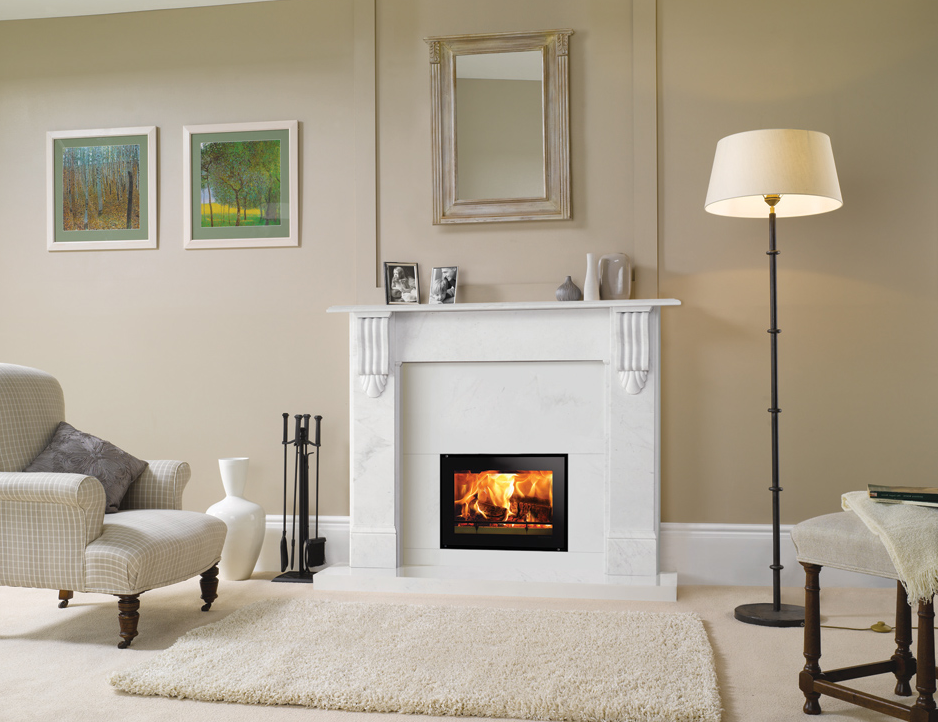

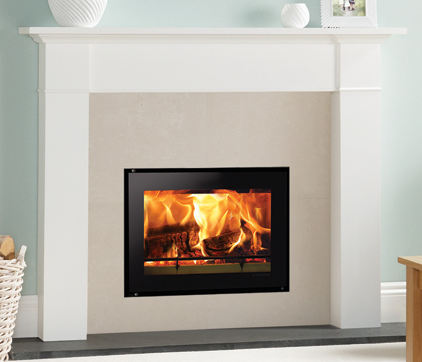

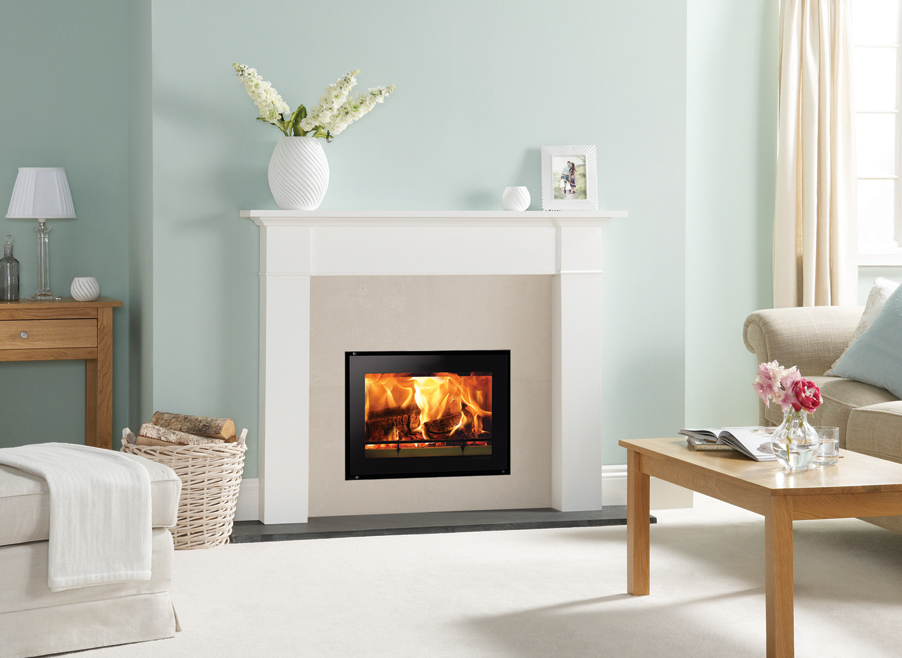

The Ecodesign Stovax Studio Edge inset fire is for those who require minimalist modern perfection. This contemporary wood burning fire has a seamless no-frame design, allowing your home’s interior to frame and enhance the roaring flames.
The Studio™ 500 has been specifically designed to fit into a standard 22” British fireplace opening without any additional building work.
Visit our Studio Inset Wood Burning Fires page for further information.
Studio Inset Wood Burning Fires
Stovax Studio inset wood burning fires are available in four sizes, each with a wide variety of frame options. From glass and steel to profil and bauhaus, there will be a frame to suit your own personal taste and style. Alternatively the Studio can be fitted with an Edge kit for a more minimalist appearance.
Visit our Studio Wood Burning Fires page for further information.
Full range of Studio Inset Wood Burning Fires…
Key Facts
| Brand | Stovax |
| Ecodesign Plus | Yes |
| High efficiency | up to 77.8% |
| Wood burning | Yes |
| Boost setting for lighting and re-fueling | Yes |
| Removable steel and TCL baffles | Yes |
| TCL firebox lining | Yes |
| Radiant heat and convected heat | Yes |
| External air facility | Yes |
| Optional warm air ducting system | Yes |
| Top flue connection (internal Ø) | 153mm (6”) |
| Suitable for Smoke Control Areas* | Yes |
* Sizes 500, 1 and 2 only. When fitted with a Smoke Control Kit and used in accordance with the operating instructions.
Studio Edge Information
| Fire Size | Nominal Heat Output & Range |
Max log lengths | Frame dimensions mm (wxhxd) Edge |
Frame dimensions mm (wxhxd) Edge ‘Cool Wall’ |
Efficiency | Energy Efficiency Class |
|---|---|---|---|---|---|---|
| Studio 500 | 5.0kW (1.7-7kW) | 250mm (10”) | 550 x 421* | 550 x 428* | 75.8% | A |
| Studio 1 | 5.0kW (1.7-7kW) | 300mm (12”) | 743 x 421* | 743 x 428* | 77.8% | A |
| Studio 2 | 8.5kW (2.8-11.kW) | 400mm (16”) | 943 x 446* | 943 x 453* | 76.3% | A |
| Studio 3 | 12.6kW (3.8-16kW) | 500mm (20”) | 1330 x 451* | 1330 x 463* | 76.1% | A |
*Dimensions given are those overall visible upon installation. Once installed, Edge kits are flush with the finished wall surface. Edge ‘Cool Wall’ kits are recessed 28mm (Studio 500, 1 & 2) or 13mm (Studio 3) from the finished surface.
“ The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website. If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know. Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability.”
