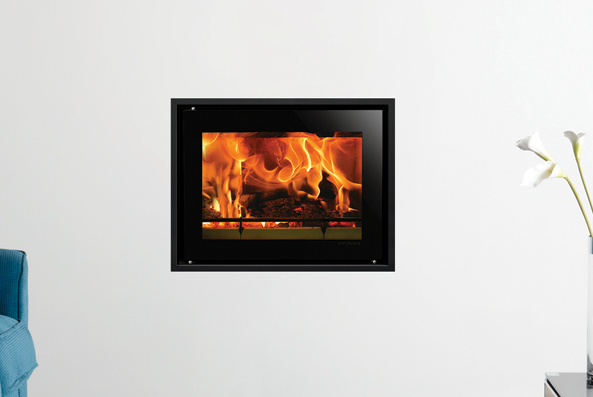

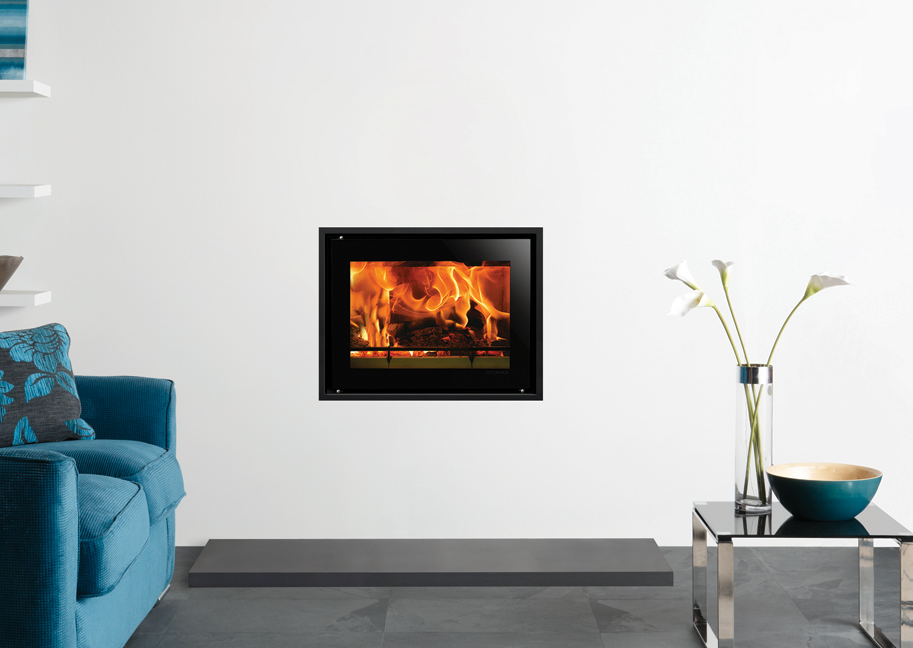

Stovax – Studio Edge + 500 Inset
As a continuation from the Stovax Studio Edge, the Ecodesign Edge + inset wood burning fire provides a similarly frameless ‘hole in the wall’ fire look, yet offers the additional benefit of a more simplified finishing process.
A slim profile decorative frame, crafted from 1mm thick steel, overlays the finished wall surface and provides a perfectly crisp finish around the installation opening.
With a complementary Matt Black finish, the Studio Edge + inset fire is a sophisticated and functional styling option that simply lets the Studio’s impressive wood burning flame picture provide all the aesthetic appeal!
Visit our Studio Inset Wood Burning Fires page for further information.
Studio Inset Wood Burning Fires
Stovax Studio inset wood burning fires are available in four sizes, each with a wide variety of frame options. From glass and steel to profil and bauhaus, there will be a frame to suit your own personal taste and style. Alternatively the Studio can be fitted with an Edge kit for a more minimalist appearance.
Visit our Studio Wood Burning Fires page for further information.
Full range of Studio Inset Wood Burning Fires…
Key Facts
| Brand | Stovax |
| Ecodesign Plus | Yes |
| High efficiency | up to 77.8% |
| Wood burning | Yes |
| Boost setting for lighting and re-fueling | Yes |
| Removable steel and TCL baffles | Yes |
| TCL firebox lining | Yes |
| Radiant heat and convected heat | Yes |
| External air facility | Yes |
| Optional warm air ducting system | Yes |
| Top flue connection | Internal Ø – 153mm (6”) |
| Suitable for Smoke Control Areas* | Yes |
* Sizes 500, 1 and 2 only. When fitted with a Smoke Control Kit and used in accordance with the operating instructions.
Studio Edge + Information
| Fire sizes | Nominal Heat Output & Range |
Max log lengths | Frame dimensions mm (wxhxd) | Efficiency | Energy Efficiency Class |
|---|---|---|---|---|---|
| Studio 500 | 5.0kW (1.7-7kW) | 250mm (10”) | 700 x 573 x 34* | 75.8% | A |
| Studio 1 | 5.0kW (1.7-7kW) | 300mm (12”) | 785 x 463 x 1 | 77.8% | A |
| Studio 2 | 8.5kW (2.8-11.kW) | 400mm (16”) | 983 x 488 x 1 | 76.3% | A |
| Studio 3 | 12.6kW (3.8-16kW) | 500mm (20”) | 1372 x 493 x 1 | 76.1% | A |
Once installed, the Edge kits are flush with the finished wall surface. Edge + kit includes decorative frame
*Depth is adjustable between 32mm and 52mm between Edge + frame and kit when fitted
