Stovax – Studio Steel – Studio 500, Studio 1, Studio 2, Studio 3

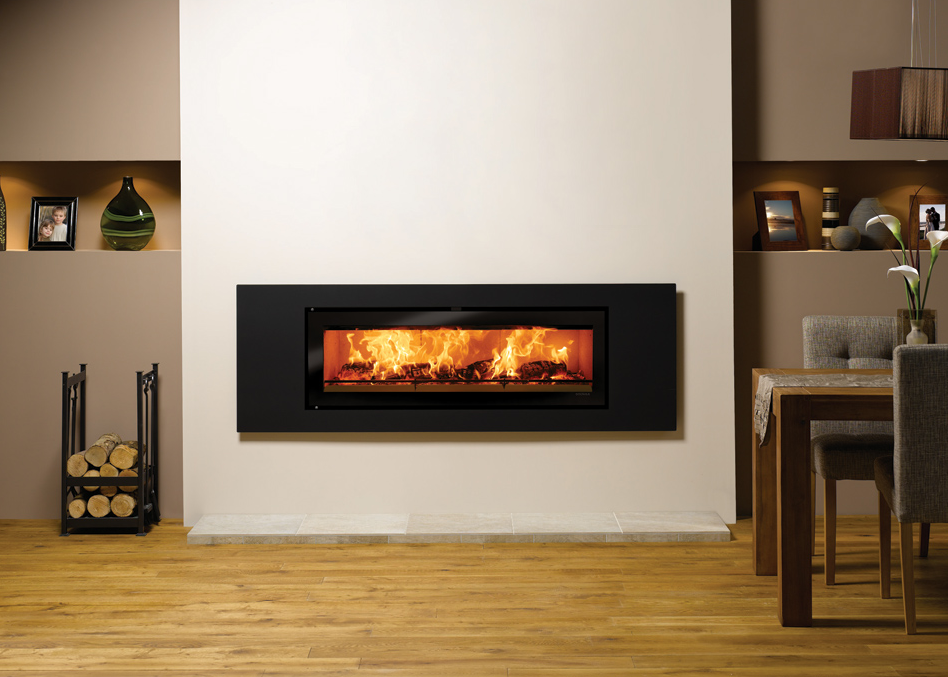

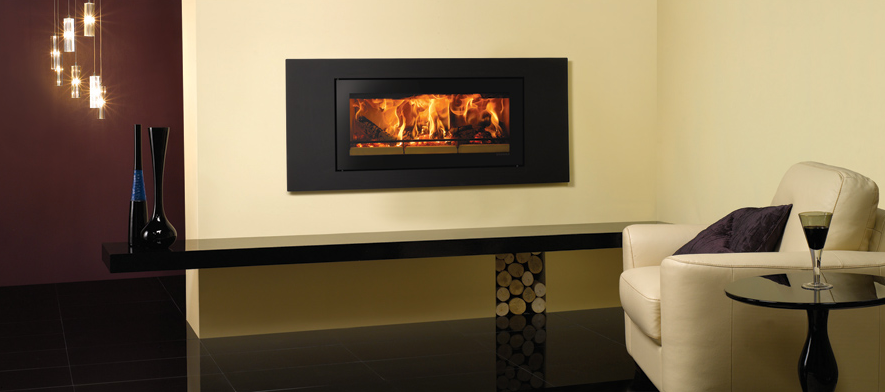

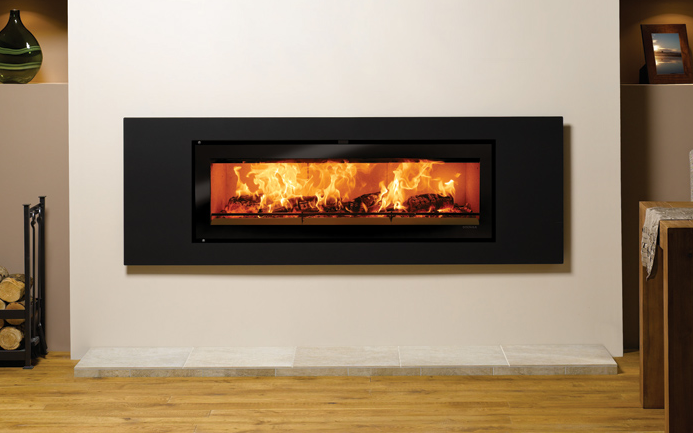

The Ecodesign Stovax Studio Steel inset fire is for those with large spaces who wish to create a greater presence with their choice of wood burning fireplace. Finished in Metallic Black, the Studio Steel’s wide frame instantly creates a distinctive and individual focal point that can be further matched to your interior space by choosing from the various sizes available.
Visit our Studio Inset Wood Burning Fires page for further information.
Studio Inset Wood Burning Fires
Stovax Studio inset wood burning fires are available in four sizes, each with a wide variety of frame options. From glass and steel to profil and bauhaus, there will be a frame to suit your own personal taste and style. Alternatively the Studio can be fitted with an Edge kit for a more minimalist appearance.
Visit our Studio Wood Burning Fires page for further information.
Full range of Studio Inset Wood Burning Fires…
Key Facts
| Brand | Stovax |
| Ecodesign Plus | Yes |
| High efficiency | up to 77.8% |
| Wood burning | Yes |
| Boost setting for lighting and re-fueling | Yes |
| Removable steel and TCL baffles | Yes |
| TCL firebox lining | Yes |
| Radiant heat and convected heat | Yes |
| External air facility | Yes |
| Optional warm air ducting system | Yes |
| Top flue connection | Internal Ø – 153mm (6”) |
| Suitable for Smoke Control Areas* | Yes |
* Sizes 500, 1 and 2 only. When fitted with a Smoke Control Kit and used in accordance with the operating instructions.
Information
| ire Size | Nominal Heat Output & Range |
Max log lengths | Frame dimensions mm (wxhxd) | Efficiency | Energy Efficiency Class |
|---|---|---|---|---|---|
| Studio 500 | 5.0kW (1.7-7kW) | 250mm (10”) | 1010 x 567 x 3 | 75.8% | A |
| Studio 1 | 5.0kW (1.7-7kW) | 300mm (12”) | 1203 x 567 x 3 | 77.8% | A |
| Studio 2 | 8.5kW (2.8-11.kW) | 400mm (16”) | 1439 x 622 x 3 | 76.3% | A |
| Studio 3 | 12.6kW (3.8-16kW) | 500mm (20”) | 1926 x 647 x 3 | 76.1% | A |
“ The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website. If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know. Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability.”
Last updated 6 June 2025
