Stovax – Studio Steel XS Inset – Studio 500, Studio 1, Studio 2, Studio 3

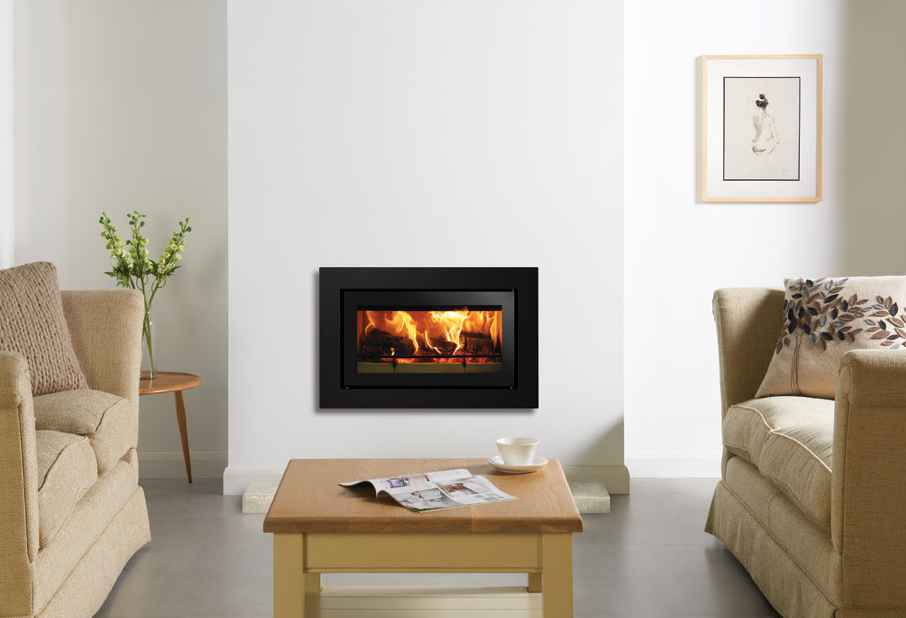

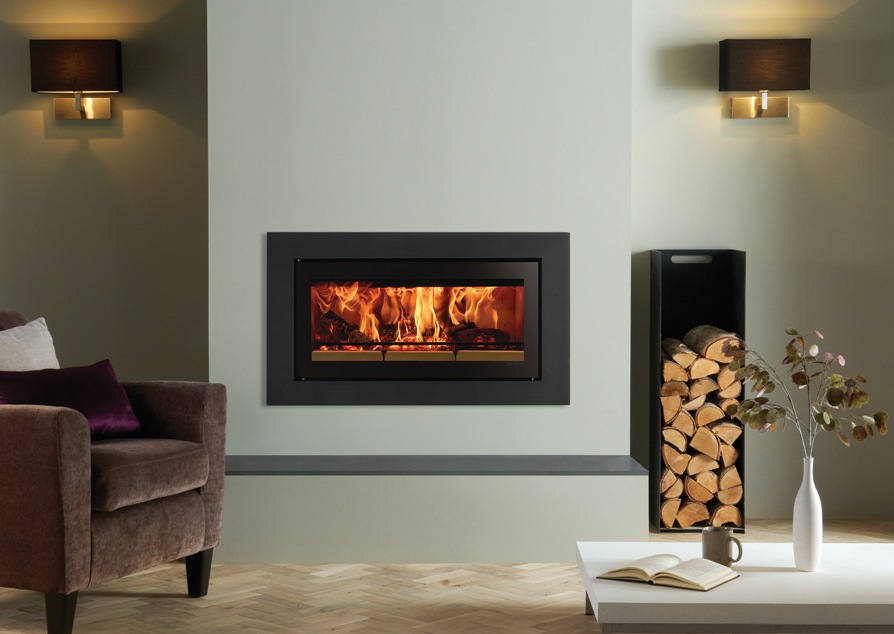

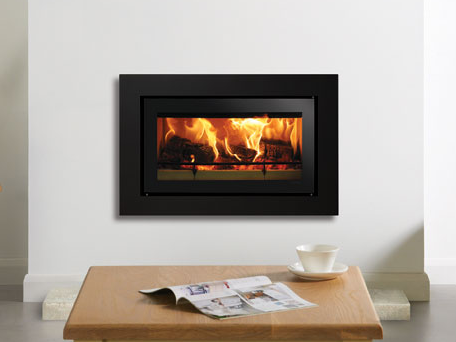

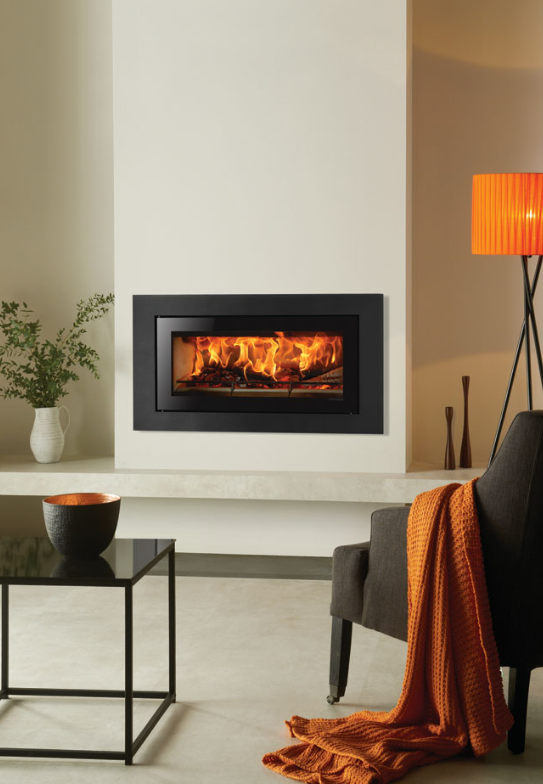

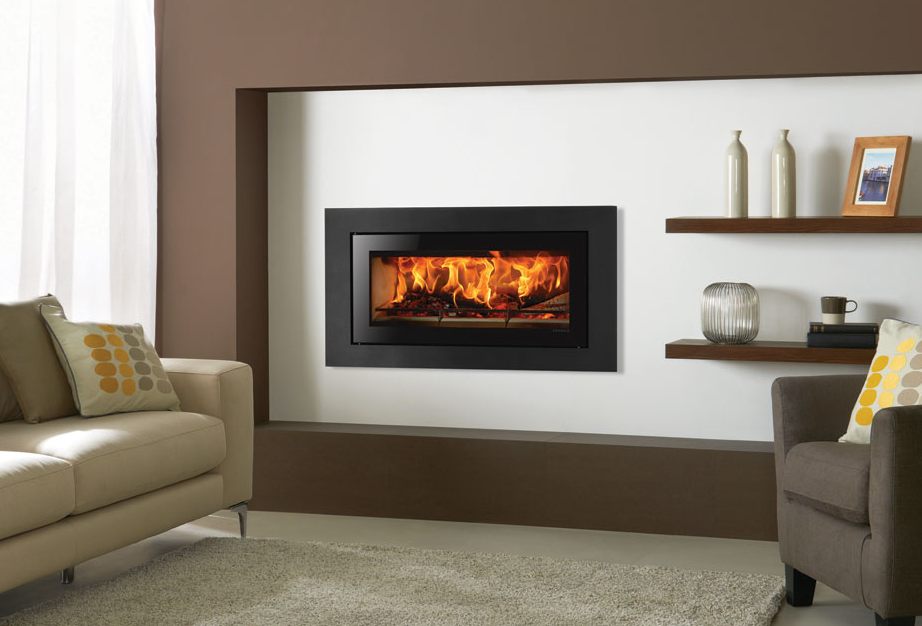

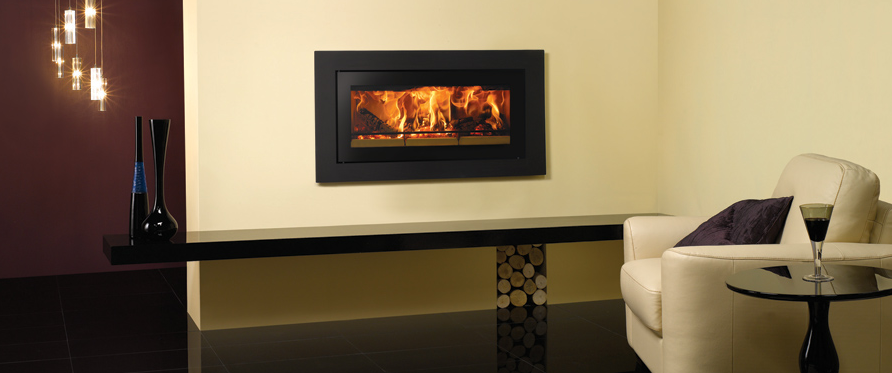

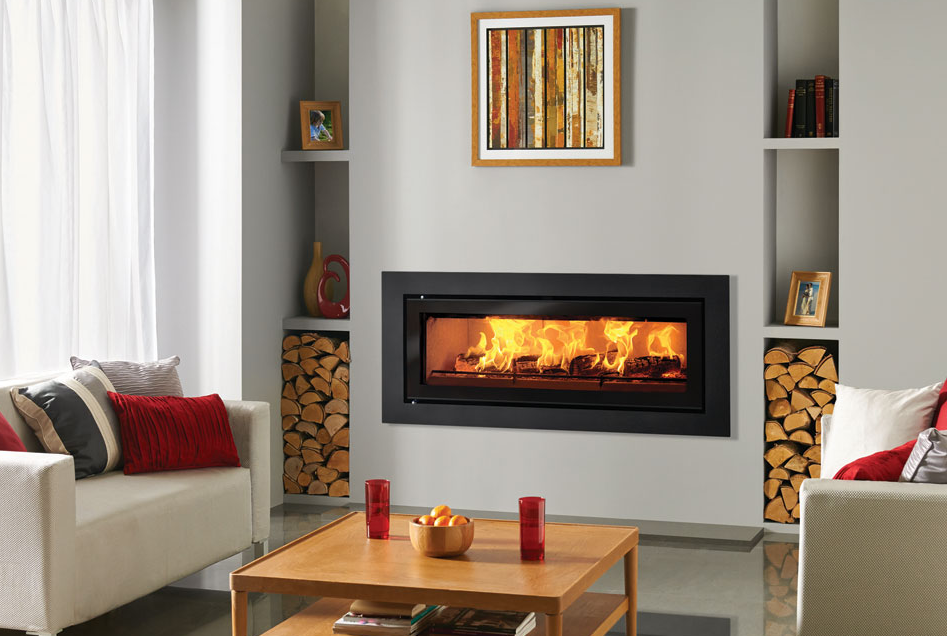

Similar to the existing Stovax Studio Steel inset wood burning fire, the Ecodesign Studio Steel XS has slimmer proportions and offers a very different look, complementing the Studio’s distinctive wide screen flame picture.
This Ecodesign Plus wood burning fire is finished in Metallic Black to really create the wow-factor.
Visit our Studio Inset Wood Burning Fires page for further information.
Studio Inset Wood Burning Fires
Stovax Studio inset wood burning fires are available in four sizes, each with a wide variety of frame options. From glass and steel to profil and bauhaus, there will be a frame to suit your own personal taste and style. Alternatively the Studio can be fitted with an Edge kit for a more minimalist appearance.
Visit our Studio Wood Burning Fires page for further information.
Full range of Studio Inset Wood Burning Fires…
Key Facts
| Brand | Stovax |
| Ecodesign Plus | Yes |
| High efficiency | up to 77.8% |
| Wood burning | Yes |
| Boost setting for lighting and re-fueling | Yes |
| Removable steel and TCL baffles | Yes |
| TCL firebox lining | Yes |
| Radiant heat and convected heat | Yes |
| External air facility | Yes |
| Optional warm air ducting system | Yes |
| Top flue connection | Internal Ø – 153mm (6”) |
| Suitable for Smoke Control Areas* | Yes |
* Sizes 500, 1 and 2 only. When fitted with a Smoke Control Kit and used in accordance with the operating instructions
Instructions
| Fire Size | Nominal Heat Output & Range |
Max log lengths | Frame dimensions mm (wxhxd) | Efficiency | Energy Efficiency Class |
|---|---|---|---|---|---|
| Studio 500 | 5.0kW (1.7-7kW) | 250mm (10”) | 688 x 567 x 34 | 75.8% | A |
| Studio 1 | 5.0kW (1.7-7kW) | 300mm (12”) | 881 x 567 x 34 | 77.8% | A |
| Studio 2 | 8.5kW (2.8-11.kW) | 400mm (16”) | 1111 x 622 x 34 | 76.3% | A |
| Studio 3 | 12.6kW (3.8-16kW) | 500mm (20”) | 1518 x 647 x 48 | 76.1% | A |
“ The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website. If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know. Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability.”
