Stûv (30-up)

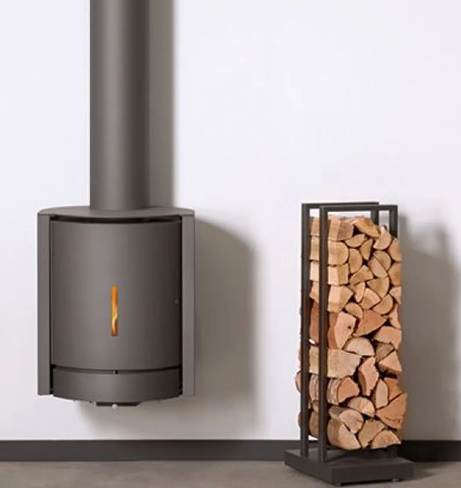

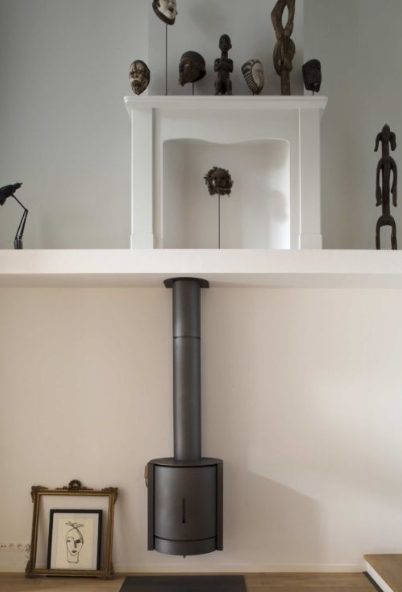

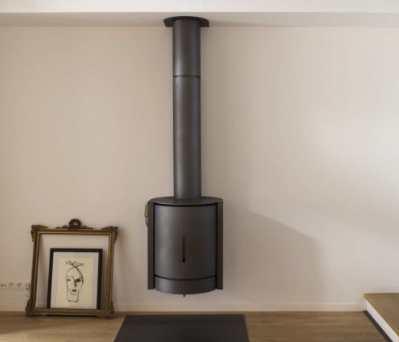

A hanging stove, ideal for small rooms or low-energy houses with – of course – three functions. Can also be connected to the outside air.

3 modes of operation

Three revolving doors that match your desires.

Changing mode only takes a few seconds: all you have to do is pivot the drum of your Stûv 30 until the door you want is in front of the stove opening.

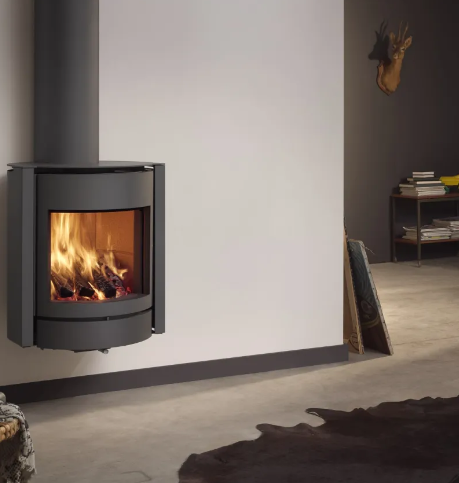

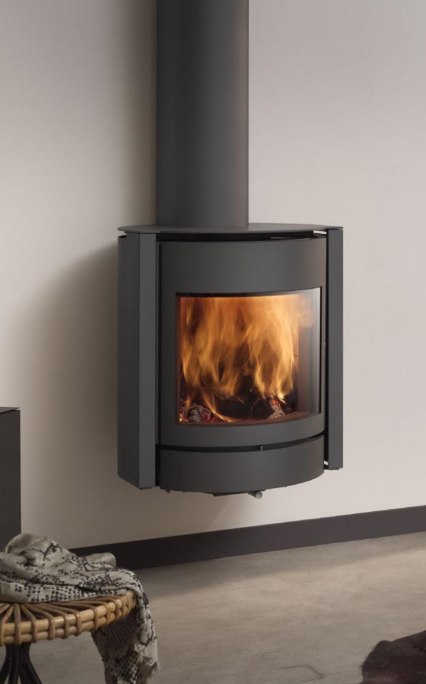

• The glass door gives a magnificent view of the flames, guaranteeing safety, eco-friendliness, and savings, thanks to its excellent output.
• The solid door slows down the fire and optimises performance.
• Open fire mode means that you can make the most of the crackling flames, the smell of the wood… and even have a barbecue!

Solid door

The solid door has insulation to cut off radiated heat.

The glass is protected and does not get dirty.

The solid door hides the inside of the stove when it is not in use.

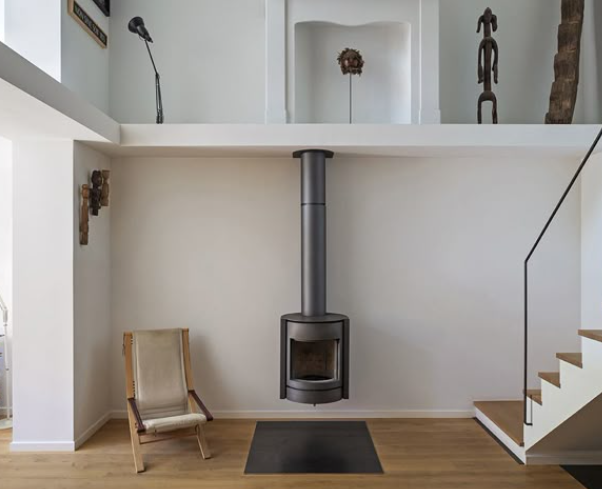

Open fire

The Stûv 30 can also be used as an open fire.

Use this position to add more wood or to enjoy the radiated heat.

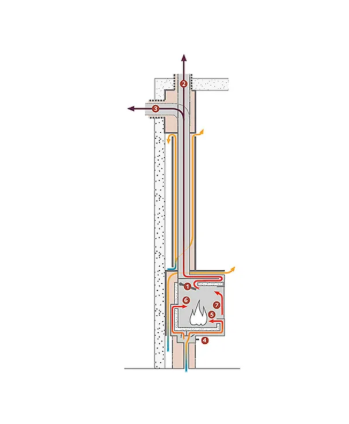

Operating mode

• A hinged diverter (1) promotes drawing to avoid discharge when the door is opened to put more fuel in or if the stove is used as an open fire.
• The flue is incorporated into a convection column. The air that circulates in the double wall recovers the heat dissipated by the flue and distributes it in the room.  The wall is protected from radiation.

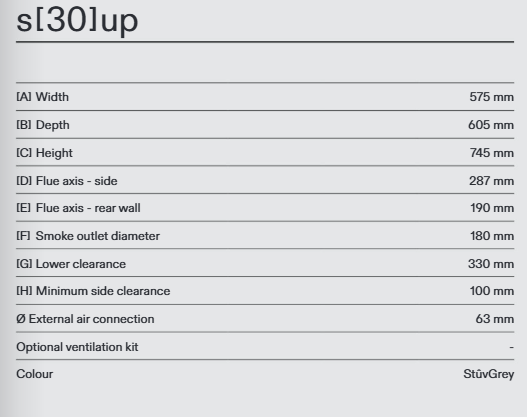

• Connection to the chimney is possible on the top (2) or towards the back (3).
• An external air intake for combustion can be connected directly to the stove to avoid consuming ambient air. This way, you can avoid air currents and any disturbances to the stove by other consumers of air (cooker hood, ventilation system etc. ). The air is taken through the ground (cellar or ventilated empty space) or from the rear.  The sheath is then protected by a cap with the same cross-section as the convection column.
• A single control (4) automatically adjusts the distribution of the air between combustion (5), post-combustion (6) and sweeping the glass (7).

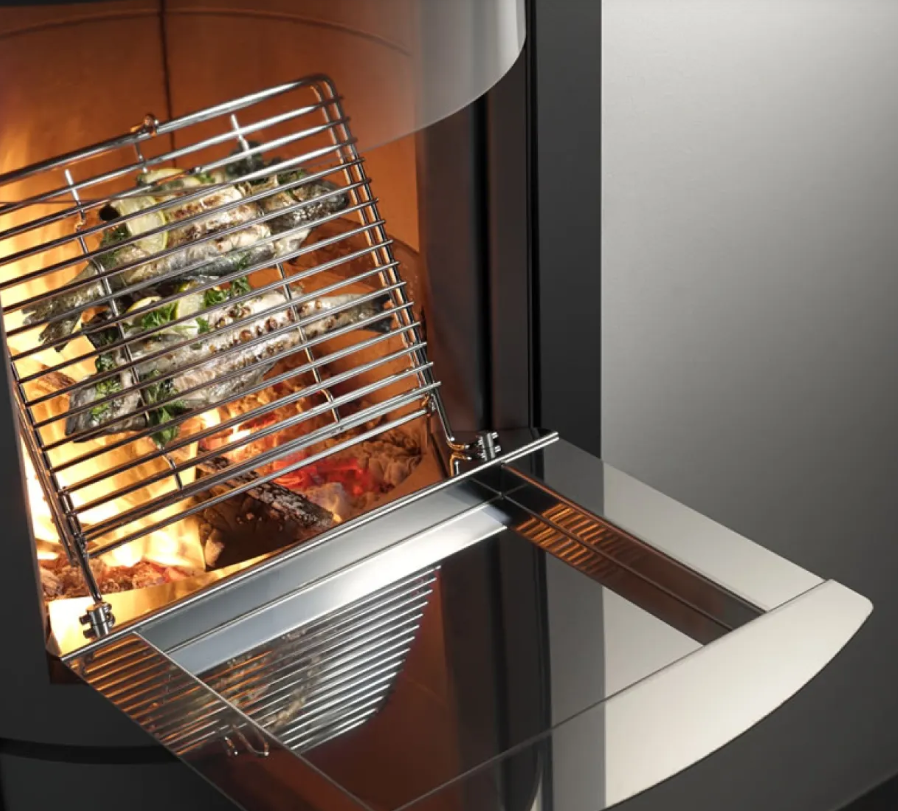

Barbecue

The Stûv 30 can be fitted with a barbecue kit. The food cooks by radiated heat, without coming into contact with the flames. Juices are collected in the stainless steel tray and smells are extracted by the flue.
